Projects

The Projects section displays information about imported files.

Overview

A Project is the initial entry point into the network topology.

Files from the Uploads panel are imported into a Project which is then viewed by the end user. Once a file is imported into a Project, users can view the reconstructed network topology.

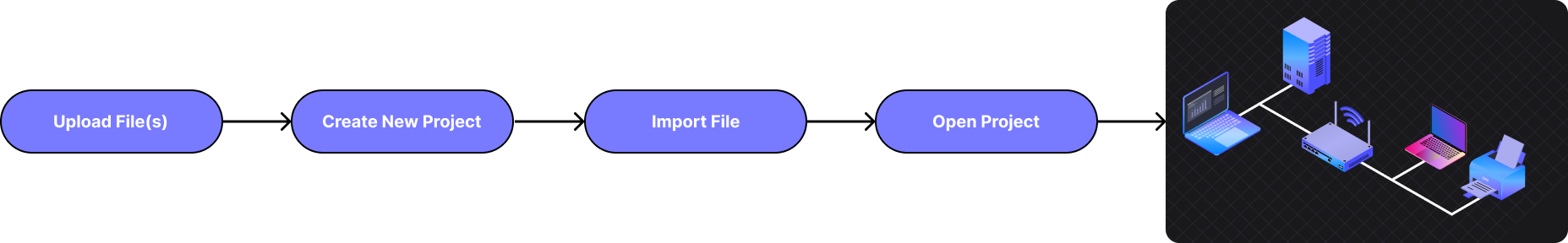

Ingestion flow

Ingestion flow

Within the Projects panel, users can see when the project was created as well as how many assets exist within the Project.

Demo Projects

To familiarize new users with the application, we have uploaded some sample projects. These projects are read-only and are available to all users.

Left-click on a Demo Project to begin playing around with a Teleseer demo project!

Demo Projects

Demo Projects

New Projects

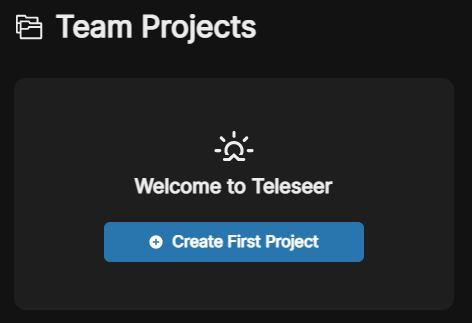

Projects can be created by various methods: Create First Project button, New Project button, or Upload > Create Project

Projects section

Projects section

Creating a new Project via New Project

  1. Left-click on the application logo at the top left of the page to navigate to the main page
  2. Within the Projects section, select the Create First Project button or the + New Project button
    [block:image]
    {
    "images": [
    {
    "image": [
    "https://files.readme.io/3b7e7f5-image.png",
    null,
    "Creating a new Project"
    ],
    "align": "center",
    "border": true,
    "caption": "Creating a new Project"
    }
    ]
    }
    [/block]
  3. Enter the desired project Name
  4. Enter the desired project Tags. Tags are space separated words that can be used to help identify and search for this project
  5. Select the Create Project button
  6. Once the project is in the OPEN state, it can then support file import
Newly created Project

Newly created Project

Importing files into a Project

Files must be imported into a Project before the network topology can be viewed. Follow the steps below to import a file into a Project.

📘

Compressed Archives

At this time, Projects support the import of 1 file or compressed archive. To import multiple files into a Project, it is recommended you create a compressed archive: Creating Compressed Archives

  1. Left-click on the desired file within the Uploads section
  2. Select the Create Project option to create a Project with the same name as this upload
  3. Select the Import to Project option to to import into a specific project
Import to project, step 1

Import to project, step 1

  1. From the dropdown, select the desired Project
Importing an Upload into a Project

Import to Project, step 2

A status of READY means the Project can now be loaded.

Project ready to load/view

Project ready to load/view

Modifying Projects

Projects can be renamed and deleted as as well as have their tagging information modified. These actions can be made by accessing the Project Tools actions within a project:

Project Tools

Project Tools

Deleting Projects

When a Project is deleted, it will remain in the system for 30 days such that users can explicitly request to have the Project restored. Please contact [email protected] if you'd like your Project restored.

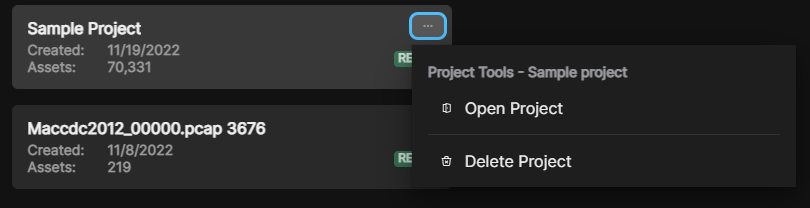

Deleting Project from Main Page

  1. Hover over the desired Project
  2. Left-click on the options menu at the top right of the Project
Delete Project

Delete Project

  1. Select the Delete option
  2. Enter the confirmation text within the text field
  3. Select the Delete button

Deleting Project within Project

Follow the steps below to delete a Project.

  1. Left-click on the desired project within the Projects panel
  2. At the top of the screen, left-click on the project name
  3. Select the Delete option
  4. Enter the confirmation text within the text field
  5. Select the Delete button

Renaming Projects

Follow the steps below to Rename a Project.

  1. Left-click on the desired project within the Projects panel
  2. At the top of the screen, left-click on the project name
  3. Select the Rename option
  4. Enter a new name
  5. Select the Rename button

Updating Project Tags

Follow the steps below to update the Project tags.

  1. Left-click on the desired project within the Projects panel
  2. At the top of the screen, left-click on the project name
  3. Select the Update Tags option
  4. Add or remove the desired tags
  5. Select the Update button

Searching for Projects

Follow the steps below to search for a project within the Projects section.

  1. Left-click within the search text field
  2. Enter the desired text to search for

Any project name or tag which contains any part of the entered text will be displayed.
