Uploads

Supported files must first be uploaded before they can be imported into a Project.

📘

Supported File Types

Before continuing, please review the following article to identify the types of files that are supported: Supported File Types

Overview

The Uploads section displays information about uploaded files.

Files must first be uploaded before they can be imported into a Project, where the network topology can be viewed.

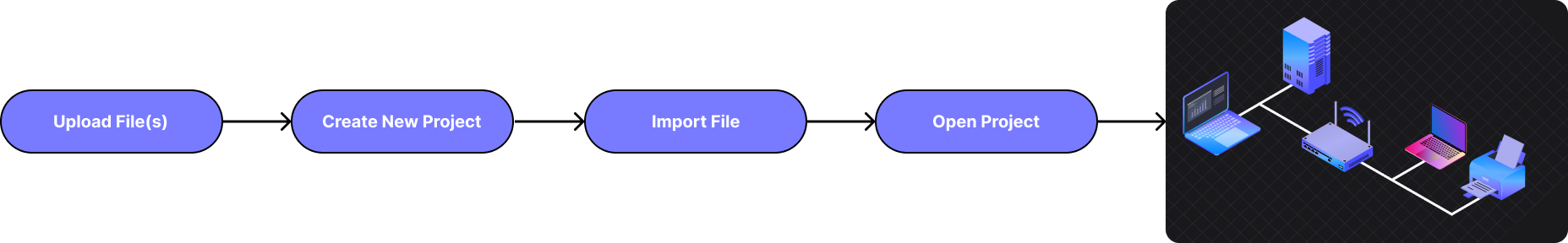

Ingestion flow

Ingestion flow

Uploading files

Files can be uploaded into Teleseer by various methods: drag and drop, New Upload button, or via Project creation.

Drag and Drop

Files can be uploaded to Teleseer simply by dragging them onto the main page:

Drag and drop file

Drag and drop file

File Upload Buttons

Files can be uploaded by selecting the Create First Upload or + New Upload buttons as well.

Create First Upload button

Create First Upload button

New Upload button

New Upload button

Uploading a file

Follow the steps below to upload a file:

  1. Left-click on the application logo at the top left of the page to navigate to the main page
  2. Perform one of the methods above to upload a file
  3. Enter the desired Name (this will override the uploaded filename)
  4. Enter the desired Tags for this file. Tags are space separated words that can be used to help identify and search for this file
  5. Select the desired file to upload
  6. Select the Open button or double-click on the file
  7. Select the Start Upload button to begin the upload process
    1. Disable Create project for upload if you do not want to automatically create a Project for this file
  8. Select the application logo or the Teleseer link to return to the main page
  9. A new Project will now be created and the uploaded file will now appear within the Uploads section and will contain the date created as well as the size of the file
New Upload panel

New Upload panel

A status of READY means the file can now be imported into a Project

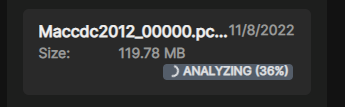

File processing

File processing

File ready to import

File ready to import

Creating Project from Upload

After a file has been uploaded, it can then be used to create a new Project.

  1. Left-click on the desired file within the Uploads section
  2. Select the Create Project option to create a Project with the same name as this upload
Create Project option

Create Project option

  1. Select the Create Project button
Create Project from Upload

Create Project from Upload

Deleting files

Follow the steps below to delete a file.

  1. Left-click on the desired file within the Uploads section
  2. Select the Delete option
  3. Enter the confirmation text within the text field
  4. Select the Delete button
Delete Upload

Delete Upload
