Network Visualization Interface

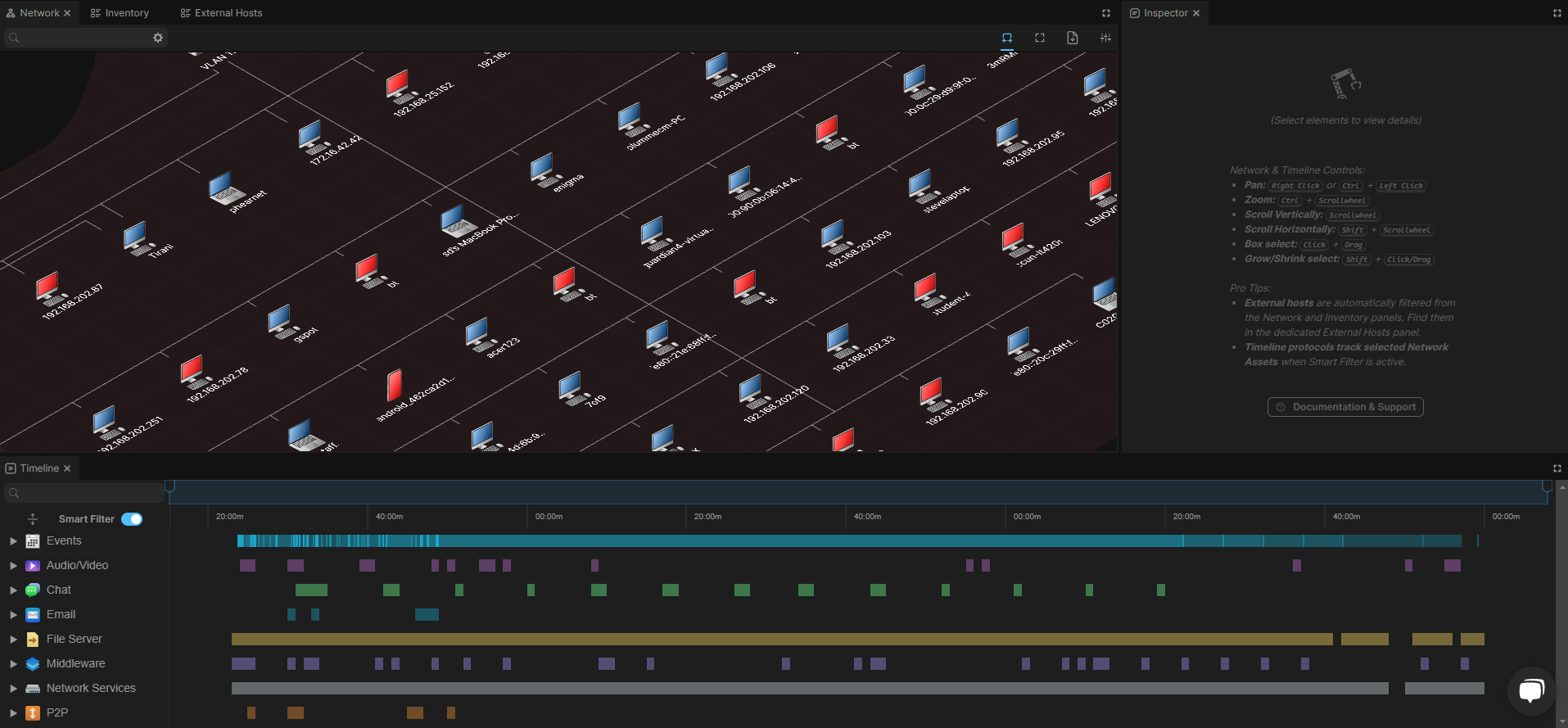

The Teleseer user interface is broken into 3 sections:

  • Topology
  • Inspector
  • Timeline

See the information below to learn more about each section.


The Topology contains the reconstructed network. All assets discovered and identified by the processing engine(s) will be displayed within the topology, both graphically and within a table.


The Inspector provides detailed information about the selected asset(s). If a user has a priori knowledge about an asset, they can add this information within the Inspector.

Example Inspector

Example Inspector


The Timeline displays all network sessions identified by the processing engine(s). The Inspector panel will display the session protocols and timestamps when clicking on a session within the Timeline.

Example Timeline

Example Timeline
